UVSS System Price in Bangladesh
A UVSS System scans the undercarriage (chassis) of vehicles using high-resolution cameras and specialized lighting. The captured image is displayed in real time so security personnel can detect suspicious objects, tampering, hidden packages or unusual modifications before a vehicle enters a protected area.
Bangladeshi market listing show Under Vehicle Surveillance System Price in Bangladesh typically start from ৳16,00,000–৳95,00,000 for basic UVSS solutions. The final cost depends on brand, model, scan lane length, camera & lighting quality, controller, sensors, software features, and integration scope (ANPR/RFID/Barrier/Access control). Enterprise deployments may cost more based on site requirements and installation.
What is an Under Vehicle Surveillance System (UVSS System)?
An Under Vehicle Surveillance System is a vehicle inspection solution designed to capture a clear, wide image of the vehicle underside as it passes over a scanning unit. The system typically includes:
-
Under-vehicle scanning module (fixed or portable)
-
High-resolution line-scan or area-scan camera
-
Industrial LED lighting (for night/low light)
-
Control PC / NVR storage
-
Monitoring software (zoom, compare, archive, alerts)
-
Optional integration: ANPR/LPR, RFID, barrier gate, access control, database logging
Unlike a simple mirror check, a UVSS can capture consistent, repeatable images and maintain a searchable record of every scan—very useful for investigations and gate security audits.

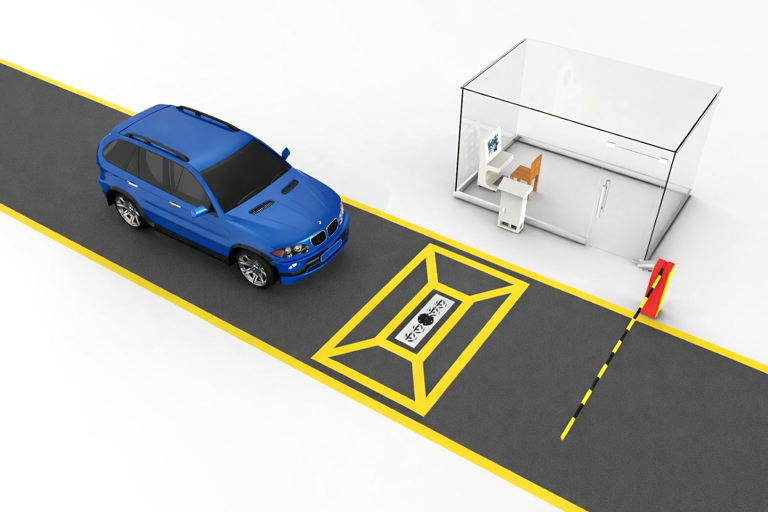

How Does an Under Vehicle Surveillance System Work?
A standard UVSS workflow looks like this:
-
Vehicle approaches checkpoint and moves slowly over the scanning module
-
UVSS camera captures the undercarriage image line-by-line (or frame-by-frame)
-
Software stitches or displays the full underbody view in real time
-
Security operator zooms and checks critical zones (fuel tank, chassis rails, bumper underside, cavities)
-
System stores scan data with time/date, lane, operator, and (optional) plate number
For high-security environments, UVSS is often combined with barrier gates, bollards, tyre killers, RFID vehicle tags and ANPR for an automated and traceable access process.
Types of UVSS System in Bangladesh (Choose the Right One)
1) Fixed Under Vehicle Surveillance System
A fixed UVSS is permanently installed at a gate lane and designed for continuous daily operation.
Best for: ports, airports, embassies, factories, military sites, corporate HQ gates
Advantages:
-
24/7 scanning with high durability
-
Higher load capacity and weather resistance
-
Easier integration with gate automation
2) Portable Under Vehicle Surveillance System
A portable under vehicle surveillance system is mobile and can be deployed temporarily.
Best for: temporary checkpoints, event security, pop-up inspections, remote locations
Advantages:
-
Quick setup and relocation
-
Useful where civil work (road cutting) is not possible
-
Cost-effective for short-term deployment
3) Hybrid UVSS (Fixed + Portable Workflow)
Some solutions combine fixed scanning + portable inspection kits for special cases.
Best for: sites needing daily scanning plus occasional deeper inspection
Advantages: flexibility, scalable security operations
Key Features to Check Before Buying a UVSS System
When comparing UVSS brands and models, focus on these practical factors:
-
Image clarity & resolution: clearer images = faster detection
-
Field of view (FOV): wider view covers more underside area
-
Scan speed support: smooth scan at slow speeds (typical gate speed)
-
Lighting quality: strong LED illumination reduces shadow zones
-
Load capacity: important for trucks, covered vans, and heavy vehicles
-
IP rating / weather resistance: crucial for Bangladesh rain and dust
-
Software tools: zoom, compare, record, operator log, alerts
-
Integration readiness: ANPR, RFID, barrier, database
-
Warranty & service: local support matters more than brochure specs
UVSS System Price (What Affects Cost?)
The under vehicle surveillance system price varies mainly due to:
-
Type: fixed vs portable vs hybrid
-
Camera technology: line-scan industrial cameras cost more but offer superior scan consistency
-
Load capacity & build quality: heavy-duty scanning modules cost more
-
Software level: basic viewing vs advanced analytics + comparison + alerts
-
Integration: ANPR, RFID, barrier gate, access control, database
-
Installation scope: civil work, lane setup, cabling, network, control room setup
-
Storage & monitoring: PC/NVR, display size, UPS, backup strategy
-
Warranty & support plan: extended support adds value and cost predictability
UVSS System Price Range in BD: Updated 2026
|
UVSS System Type
|
Estimated Price in (BDT)
|
|
Portable/Mobile UVSS System
|
৳ 16,00,000 – ৳ 25,00,000
|
|
Fixed UVSS System (Standard)
|
৳ 18,00,000 – ৳ 45,00,000
|
|
Fixed/Permanent UVSS System (Advanced)
|
৳ 45,00,000 – ৳ 95,00,000
|
|
Handheld/Mirror Inspection
|
৳ 1,00,000 – ৳ 2,50,000
|
Also, public marketplace listings show UVSS can be priced in multi-million BDT ranges depending on model and vendor.
Where UVSS Is Commonly Used in Bangladesh
A UVSS System is typically deployed at:
-
Government facilities and sensitive offices
-
Embassies and diplomatic zones
-
Airports, seaports, customs checkpoints
-
Military camps and law enforcement entry points
-
Banks, data centers, telecom facilities
-
Large factories, EPZ/industrial gates
-
High-profile events and VIP movement routes (portable UVSS)
If your site handles frequent vehicle entry, UVSS provides an efficient screening layer without slowing operations too much.
Fixed vs Portable Under Vehicle Surveillance System
Choose Fixed UVSS if you need:
-
daily scanning at the same gate lane
-
higher durability and load rating
-
smoother integration with barrier and access control
Choose Portable UVSS if you need:
Final Thought / Conclusion
A modern Under Vehicle Surveillance System (UVSS System) is no longer optional for high-risk facilities—it is a practical investment that improves gate security, creates inspection records, and reduces dependency on manual undercarriage checking. For Bangladesh in 2026, the right UVSS choice depends on your gate traffic, vehicle types, required integrations, and the level of operational security you want.
If you want the best value, focus on image clarity, durability, integration readiness, and after-sales service—not just the initial price. A properly installed UVSS can protect your site for years while keeping vehicle movement efficient and controlled. GCTL is one of the best Under Vehicle Surveillance System (UVSS System) supplier in Bangladesh.
