Product Description: Suprema Biolite Net BLR-Oc Outdoor Figerprint Access Control Terminal

Suprema introduces BioLite Net, the world’s smallest IP-based BioLite Net fingerprint terminal with time attendance and access control capability. With rugged IP65 rated waterproof structure, it offers extra durability and it’s perfect for outdoor installation. From simple door control to complex networked environment, BioLite Net supports full functionality of time attendance and access control. All features comes in an elegantly designed, slick and slim device.

Rugged structure for outdoor installation and extra durability
Fast and accurate fingerprint identification
Easy installation and connectivity
Easy operation and management
Slim and elegant design
Full access control features
External relay unit

World-Renowned Suprema Fingerprint Algorithm

BioLite Net is powered by Suprema’s renowned fingerprint algorithm that has been recognized multiple times by both FVC and NIST MINEX as the best algorithm in the world. The device delivers fast matching speed and rapid responses while providing an exceptional low error rate. The powerful DSP of the device is capable of handling large amounts of data required for fast and accurate verification while ensuring uninterrupted device operations.

FVC : International competition focused on fingerprint verification software Assessment
MINEX TEST : Minutiae Interoperability Exchange Test by US Government’s NIST

Best Product, Detektor International Award

BioLite Net is one of the world’s smallest IP fingerprint terminals with Access Control and Time & Attendance features. Due to its long list of features and functions, BioLite Net was awarded the Best Access Control Product Award in the 2009 Detektor Inter-national Awards and was also IFSEC 2009 Security Industry Awards Finalist.

IP65, Dust and Waterproof

BioLite Net packs Suprema’s biometric technology into a simple and slim design exterior. The IP65 rating ensures that the device is exceptionality durable and reliable in indoor or outdoor settings. Sophisticated biometric technology, advanced features, and an user friendly interface make BioLite Net an exceptional value for your budget.

Versatile Interface

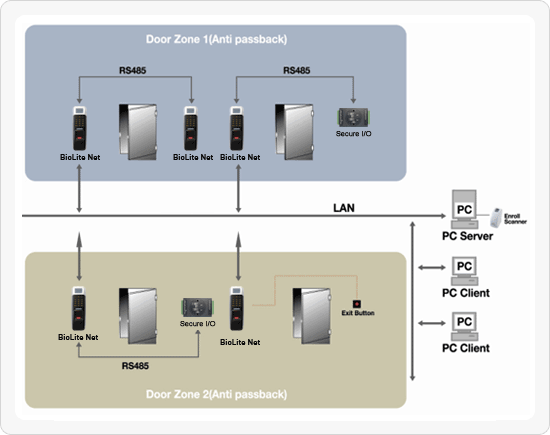

BioLite Net hosts a number of different interfaces for higher flexibility and multiple installation options. It comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand) and 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded by using the Secure I/O accessory.

Specifications:

CPU	400MHz DSP
Memory	8MB flash + 16MB RAM
Fingerprint Sensor	500 dpi optical sensor
Identification Speed	2,000 matches in 1 second
Fingerprint capacity	5,000 fingerprints (10,000 templates)
Log Capacity	50,000 events
RF Card	Mifare (13.56 MHz), EM(125 KHz)
Authentication	Fingerprint/ PIN / Card
Network interface	TCP/ IP, RS485
Wiegand	1 channel (input/ output switchable)
TTL I/O	2 inputs for exit switch and door sensor
Internal relay	Deadbolt, EM lock, door strike, automatic door
Ingress Protection Rate	IP65 class
LCD	128 x 64 pixel, black & white
Keypad	3 x 4 keypad, 3 navigation keys
Sound and Interface	Multi-color LED and multi-tone buzzer
Operating Voltage	12VDC
Operating Teperature	-20°C ~ 50°C (-5°F ~ 122°F)
Dimensions (mm)	60 x 185 x 40 (W x H x D)
