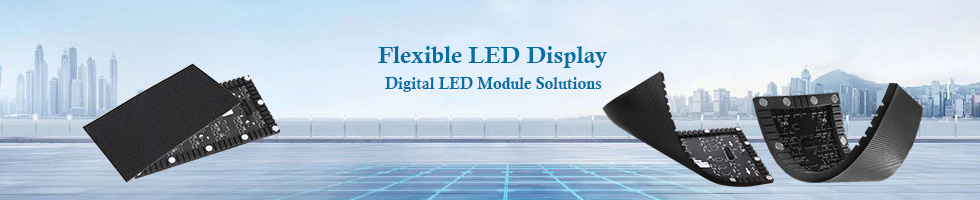

Flexible Soft LED Display Module – Bendable LED Screen
In the fast-evolving world of digital signage, the Flexible Soft LED Display Module is redefining what’s possible. Unlike traditional flat LED panels, these bendable, ultra-thin modules offer endless creative possibilities, from curved video walls to circular, cylindrical or wavy LED installations.
Whether you’re designing a futuristic retail store, museum display, stage backdrop, or architectural installation, flexible LED modules deliver brilliant visuals, high refresh rates and unmatched flexibility.
What Is a Flexible Soft LED Display Module?
A Flexible Soft LED Display Module is a thin, lightweight, and pliable LED panel made with soft PCB and silicone rubber materials that can bend and shape into curves without damaging the LED components.
Each module uses SMD1010, SMD1212, SMD1515, or SMD2121 LED chips, ensuring high brightness, vibrant color accuracy, and consistent performance across a wide range of pixel pitches, from P1.25 mm to P5 mm.
These modules are particularly popular for indoor creative installations, where unique forms and seamless display transitions are key.
Why Choose a Flexible LED Module?
1. High Flexibility and Creativity
Flexible LED panels can bend up to 120 degrees or more, allowing designers to create circular, concave, convex, and wave-like LED surfaces, perfect for art galleries, exhibitions, and luxury retail spaces.
2. Ultra-Lightweight and Easy Installation
The soft PCB and magnetic back design make installation quick and tool-free. You can easily attach or remove modules for maintenance without damaging the structure.
3. Exceptional Visual Performance
With refresh rates up to 3840 Hz, flexible modules ensure flicker-free, high-contrast images. Advanced SMD LED technology enhances brightness, uniformity and color depth.
4. Durability and Longevity
Every module undergoes a 72-hour aging test, including white balance and full-video testing, ensuring no dead pixels or brightness inconsistencies.
5. Multiple Pixel Pitch Options
Available in pixel pitches from P1.25 mm, P1.579 mm, P1.667 mm, P1.875 mm, P2 mm, P2.5 mm, P3 mm and P4 mm, supporting diverse resolutions for near-to-far viewing distances.
Technical Highlights (Based on UNIT-LED Specifications)
|
Pixel Pitch
|
LED Type
|
Module Size (mm)
|
Resolution (dots)
|
Scan Mode
|
Brightness (Nits)
|
|
1.25 mm
|
SMD1010
|
240×120
|
192×96
|
1/48
|
650
|
|
1.579 mm
|
SMD1010–1212
|
240×120
|
152×76
|
1/38
|
650–700
|
|
1.667 mm
|
SMD1010–1212
|
240×120
|
144×72
|
1/36
|
650–700
|
|
1.875 mm
|
SMD1515
|
240×120
|
128×64
|
1/32
|
700–900
|
|
2 mm
|
SMD1515
|
240×120 / 320×160
|
120×60
|
1/30
|
750
|
|
2.5 mm
|
SMD1515
|
240×120 / 320×160
|
96×48 / 128×64
|
1/24 / 1/32
|
700–750
|
|
3 mm
|
SMD2121
|
240×120 / 320×160
|
80×40 / 104×52
|
1/20 / 1/26
|
650–900
|
|
4 mm
|
SMD2020
|
256×128 / 320×160
|
80×40 / 64×32
|
1/20 / 1/16
|
700–850
|
Applications of Flexible LED Displays
-
Shopping Malls: Curved advertising walls and digital art installations.
-
Stage Design: Creative concert backgrounds and event lighting.
-
Corporate Spaces: Unique conference room signage or curved displays.
-
Museums & Exhibitions: Dynamic storytelling with 3D-effect visuals.
-
Architectural Design: Cylindrical or dome-shaped LED lighting structures.
Advantages Over Conventional LED Panels
|
Feature
|
Flexible LED Module
|
Conventional LED Panel
|
|
Flexibility
|
Bendable, customizable
|
Rigid, flat surface only
|
|
Weight
|
Lightweight (soft PCB)
|
Heavy metal cabinet
|
|
Design Freedom
|
High – supports creative shapes
|
Limited to rectangular
|
|
Maintenance
|
Magnetic module – easy access
|
Tools required
|
|
Visual Quality
|
Smooth curve, seamless join
|
Visible seams on edges
|
Key Specifications Summary
-
LED Type: SMD1010 / SMD1515 / SMD2121
-
Refresh Rate: ≥ 1920–3840 Hz
-
Viewing Angle: 140° (H/V)
-
Working Voltage: DC 5 V
-
Power Consumption: Avg. 350 W/m² – Max 700 W/m²
-
Working Temperature: –10 °C to +60 °C
-
Lifespan: 100,000 hours
-
Warranty: 2 Years
How to Choose the Right Flexible LED Module
When choosing a flexible LED display, consider:
-
Installation Shape & Space – Decide if you need concave, convex, or circular designs.
-
Pixel Pitch & Viewing Distance – Smaller pitch (P1.25–P2) for close viewing; larger pitch (P3–P5) for large-scale displays.
-
Brightness Requirements – Indoor setups need 600–900 nits; outdoor or semi-outdoor need 1000 + nits.
-
Control System Compatibility – Ensure your LED controller supports 3840 Hz refresh.
-
After-sales Support – Buy from trusted brands offering 2-year warranty and lifetime service support.
Shaping the Future of Visual Art
Flexible LED technology merges art, architecture, and engineering. From immersive museum experiences to futuristic retail environments, soft LED modules are enabling 3D-like visuals that capture audience attention like never before. They’re not just displays, they’re the canvas of modern digital creativity.
FAQs
1. What is a flexible LED display module used for?
It’s used to create curved, round, or wavy LED screens for artistic or commercial applications, where flat panels can’t achieve the required design.
2. Are flexible LED modules durable?
Yes. Made with soft silicone PCBs, they’re tested for over 72 hours under full-load conditions and have a 100,000-hour lifespan.
3. Can flexible LED panels be used outdoors?
Most are indoor-rated, but some models like P4 Outdoor Flexible Modules offer high brightness (3840 Hz) for outdoor projects.
4. How do you install a flexible LED module?
Modules use magnetic connections or custom frames to attach to curved surfaces, allowing easy removal for maintenance.
5. What is the price range for flexible LED modules?
Flexible LED Display Modules Price start from ৳5,000 to ৳10,000 Per module panel
